Let’s be honest, do you really want to tear apart your RV bedroom just to upgrade your bed?
No… and you shouldn’t have to. One of the most common (and frustrating) issues in travel trailers is the factory bed setup. Thin mattress, weak framing, and just enough support to get by, but not enough for real comfort or long-term use. In this DIY RV camper renovation, I walk through how I reinforced our RV bed frame, upgraded the mattress, and solved the issues that come with adding more weight without ripping the entire thing apart.
The Problem: RV Beds Just Aren’t Built for Real Life
The first issue we ran into was simple: our backs were not happy.
Like most RVs, our camper came with a 3-inch thick mattress that just wasn’t cutting it. It worked for a night or two, but over time, it became clear we needed something better.
But upgrading the mattress created a second problem: More weight = more stress on the frame
And if you’ve ever looked under your RV bed, you know the construction is… let’s just say minimal. Add in kids jumping in for morning snuggles, and now you’ve got a recipe for future problems.
The Upgrade: A Real Mattress (and What to Expect)
We upgraded to a residential-style RV mattress that shipped vacuum-sealed in a box. That part is awesome; it makes it easy to get into the camper. Otherwise, you would have to recall all the physics, algebra, and geometry you learned in high school. That said…This is still a two-person job. These mattresses are heavy, and if your bedroom is tucked behind a divider (like ours), you’ll need help maneuvering them into place. Don’t try to be a hero here; get an extra set of hands.
New Mattress = New Problems
Once the new mattress was in, the issues showed up immediately.
- The original lift struts couldn’t handle the weight
- The bed became hard to lift
- The framing underneath started making cracking sounds
Not exactly what you want to hear after an upgrade.
Fix #1: Upgrading the Bed Lift Struts
>> Amazon Affiliate: 200lb Gas Struts <<
Because our storage is located under the bed, we still needed easy access; this wasn’t optional.
To fix this:
- I added higher weight-capacity struts
- I kept the original ones but repositioned them forward
- This helped distribute the load more effectively
The result:
- The bed lifts smoothly
- It stays up safely
- My wife can open it without worrying about it dropping
This is one of those small upgrades that makes a huge difference in usability and safety.
Fix #2: Reinforcing the Bed Frame (Without Rebuilding It)
The bigger concern was the structural support under the mattress.
Once the new bed was in place, we could literally hear the particle board flexing and cracking under the weight.
Instead of tearing everything out, I took a simpler approach: Reinforce, don’t replace

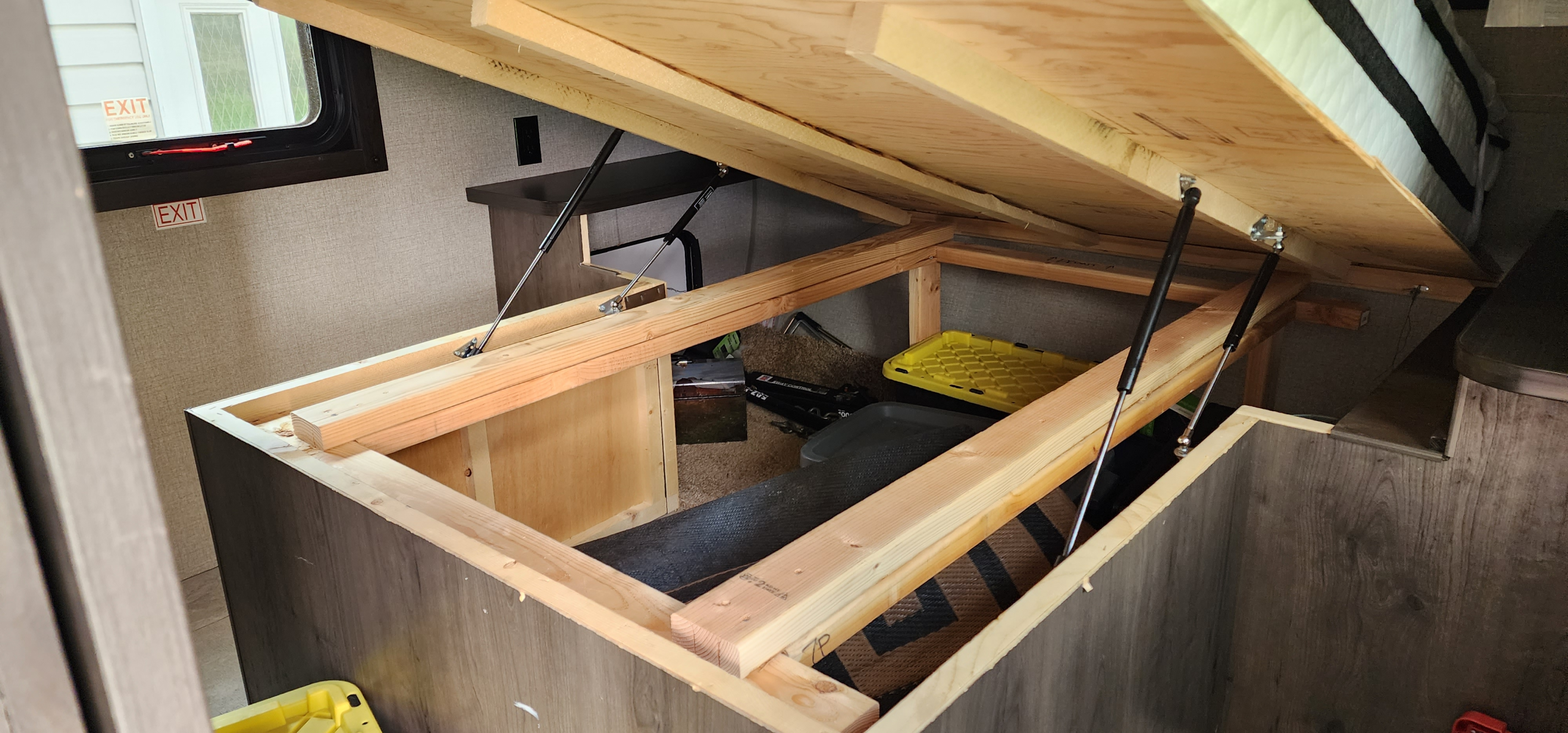

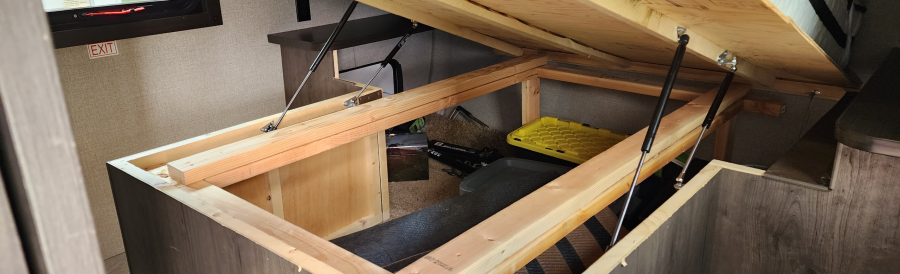

Using a few 2x4s, I built a basic support frame underneath the existing platform.
- The original board stays in place (it acts as the base)
- The new 2×4 frame supports it from underneath
- Everything fits within the existing structure
I only used three 2x4s, and that was intentional.
Why I Didn’t Overbuild It
With RV renovations, more isn’t always better.
I kept the reinforcement minimal because:
- I didn’t need more support than that
- I wanted to avoid adding unnecessary weight
- Too much weight in the front affects tongue weight and towing stability
This is a big one—every modification in an RV should consider how it impacts towing.
Final Result: A Bed That Actually Feels Like Home
After these upgrades:
- The bed is comfortable
- The frame is solid and quiet
- The lift system is safe and functional
- We still have full access to the storage underneath
And maybe most importantly…No more worrying about what’s happening under the mattress
Final Thoughts on DIY RV Renovations
This is exactly the kind of project I love:
- Simple
- Practical
- Solves real problems
- Doesn’t require tearing your camper apart
If you’re thinking about upgrading your RV bed, just remember:
- The mattress is only half the project
- The support system matters just as much
Do it right once, and you won’t have to think about it again.
